Project 9: pinwheel

 Homework 9: pinwheel

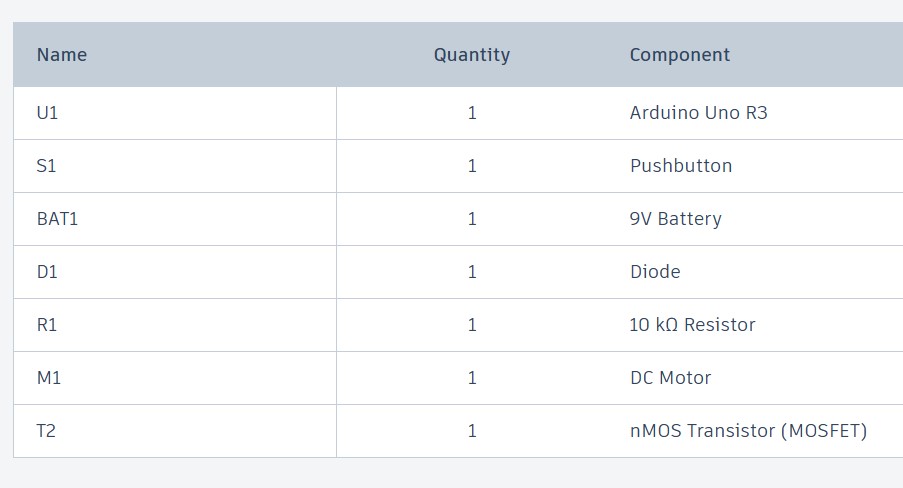

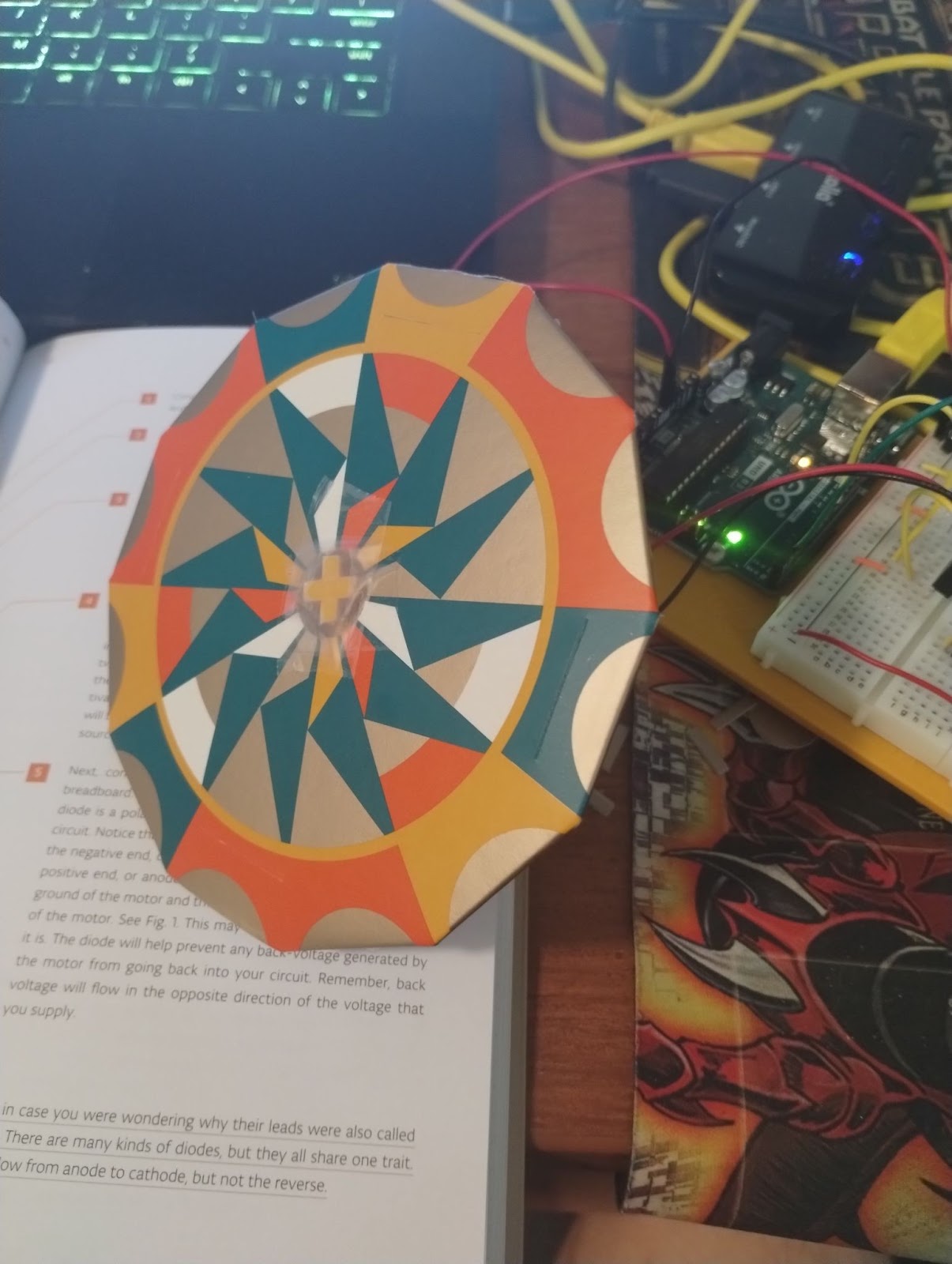

For this project we are going to be making a Pinwheel. This project will utilize the dc motor controlled by a button and is using the transistor. The button will tell us if our transistor should apply the power. I went ahead and built the circuit and added the components list and a schematic view. I even added the pinwheel touch.






Coding

The coding alongside the circuit was pretty easy. We are simply just checking for a button press and determining if we should apply power to the motor.





Finished Product

This was simple and fun, and I learned that my taping job for the pinwheel held up for when the motor was at full speed. Sadly, the accompanying video does not show that. I also did learn that if you want to test the 9v by just tapping it to the connector make sure that the proper ends connect. I was applying negative to positive and positive to negative and it was causing the motor to run without the button being pressed.
