Project 14: Tweak The Logo

 Homework 14: Tweak The Logo

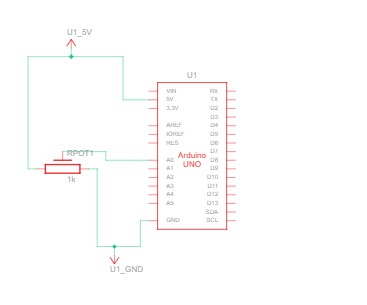

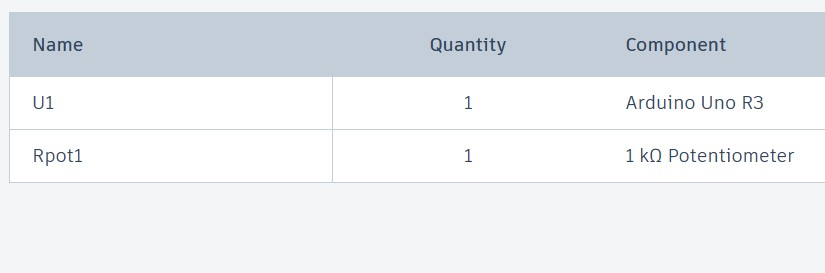

This project we are going to be editing the logo's background using a potentiometer. This will require a new application Processing. We need the processing to load the image on our system and have it communicated with the Arduino. The circuit is even simpler this time and I went ahead and built it. Here are the components and the circuit.













Coding

The coding is simple but we will be using two applications. The Arduino ide and processing. We will be communicating between the two to show the serial connection that can be made.

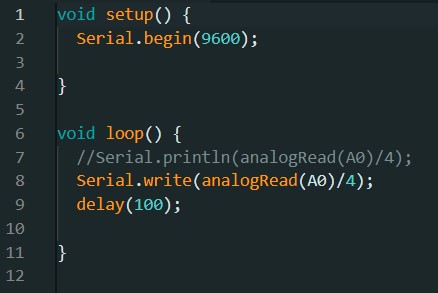

Arduino IDE:

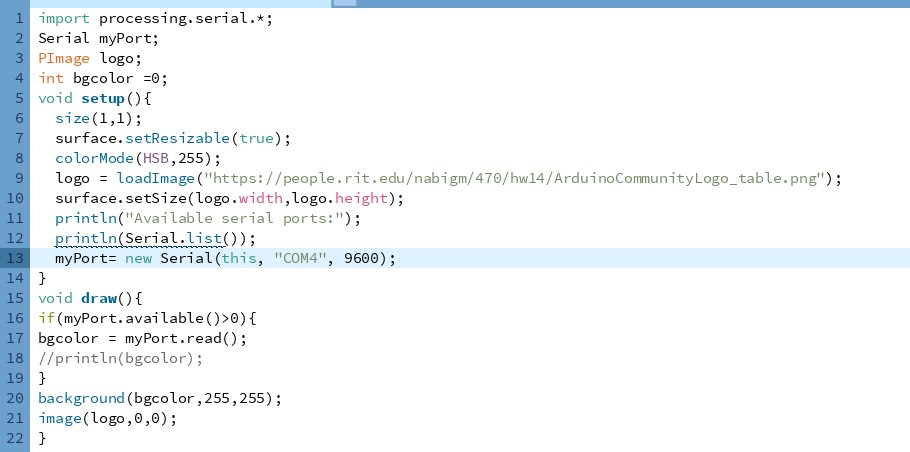

Processing:




Finished Product


This project was a simple build and some easy coding. The serial connection to have the two communicate was pretty interesting and has many various uses for the advancement of coding.
