Project 3: Love Meter

 Love Meter

For this project we focused on the temperature sensor and used it to test the body temperature and see the level of “love one person has. I went ahead and put all the wires and resistors into the breadboard. After that I created the aesthetic to it and the levels that will coincide with the temperature.



Coding

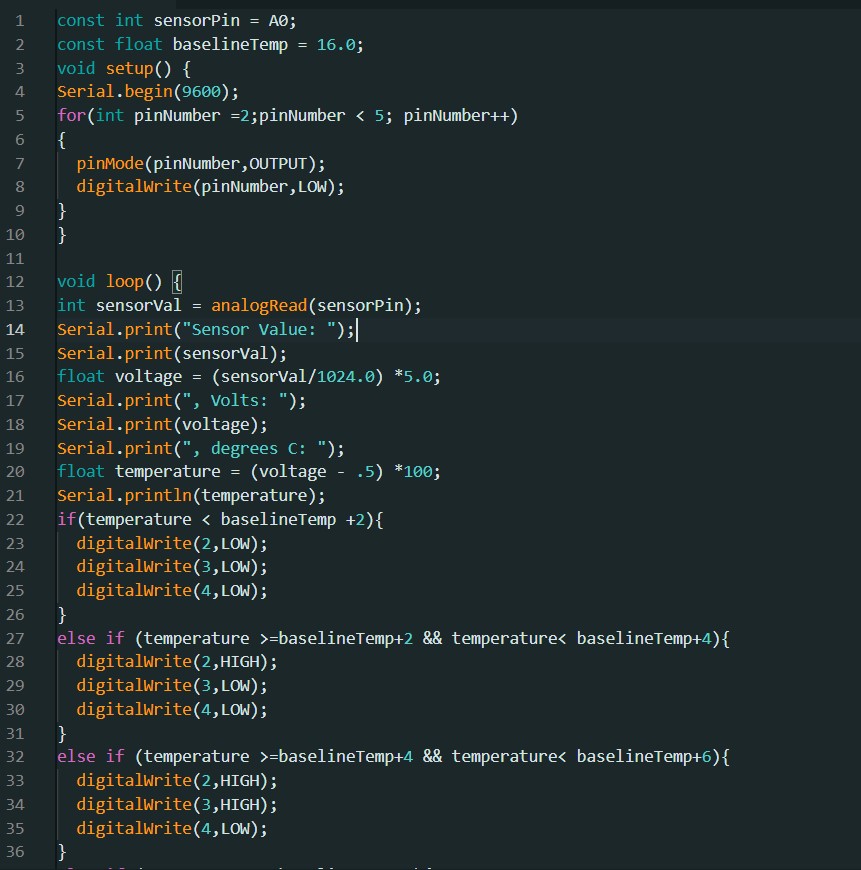

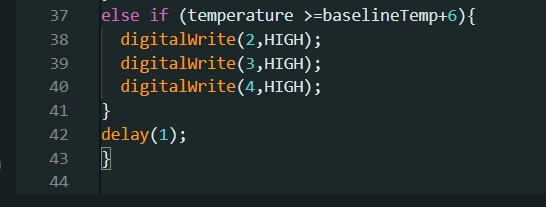

I followed along with the book and coded what was going to be need for this love meter.







This coding would take the reading and do multiple calculations and turn it into voltage and have a certain number of Leds show up.



Finished Product

So, a difference between the book and my code is that the baseline temp is different. My fingers are just naturally cold so in the following video I show how my fingers shut the light off. The aesthetic was also off because I had to make sure the connections were right. Also, the way the temperature sensor sits matters. I thought I had it wrong till I turned it around and almost burnt my finger when testing it.
