Project 2: Spaceship Interface




Spaceship Interface

So for this project we are creating a spaceship-like interface.

So I started off by going through and assembled the wires and leds into their appropriate spots.

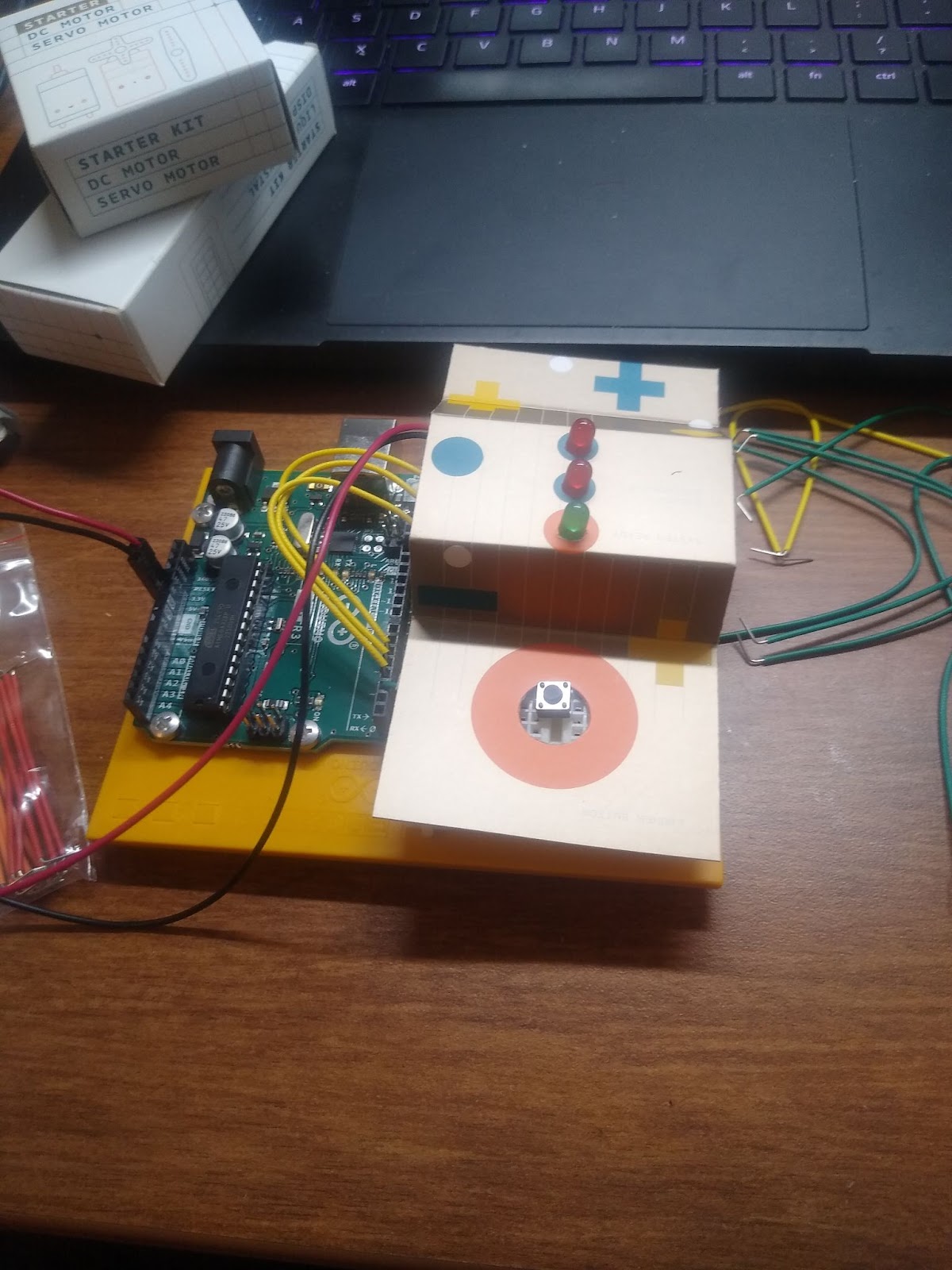

Then I added the cover to it to give it the feel of a control panel. Then I got to work on the coding.



Coding

So, I opened up the Arduino IDE and started to follow along with the book and then after a few minutes got the code finished.

Verified the code and then sent it to the Arduino and then disaster hit. So, I had to take everything apart and recheck the connections. Turns out the Leds were in the wrong way.


Finished Product

After fixing the issues I sent the code again to make sure no corruption happened. I also switched the leds because I thought maybe the leds were bad. The blue led is also just brighter and easier to see.
